Provide various pipe cutting solutionsfor customer's different cutting requirementsTube diamater:10mm-720mm

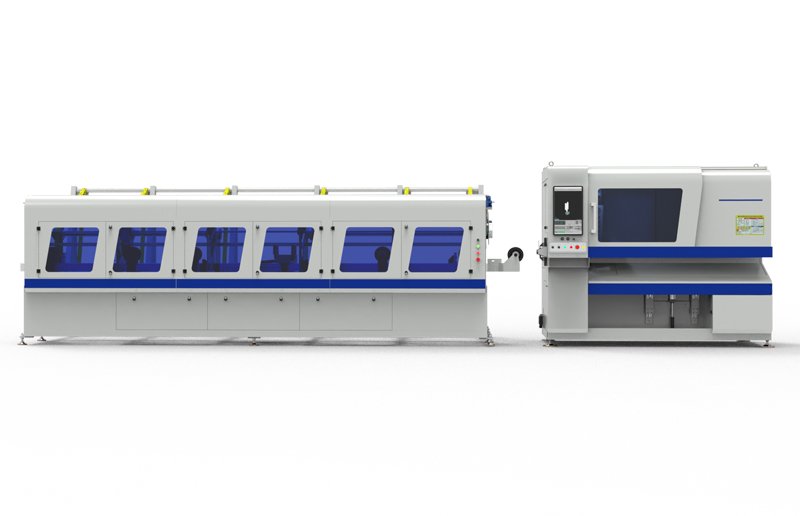

Model:A5 support 10mm-85mm pipe,automatic loading

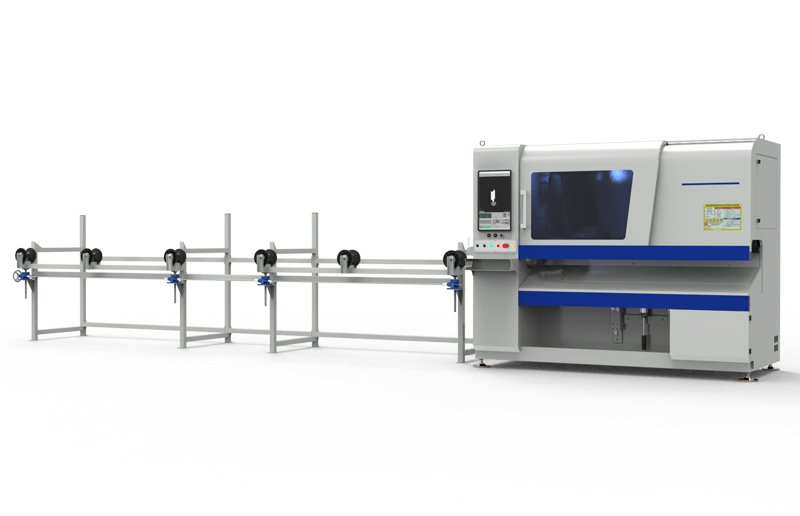

Model:A16C support 10mm-160mmpipe, bevel+straight cutting;Semi-automatic loading

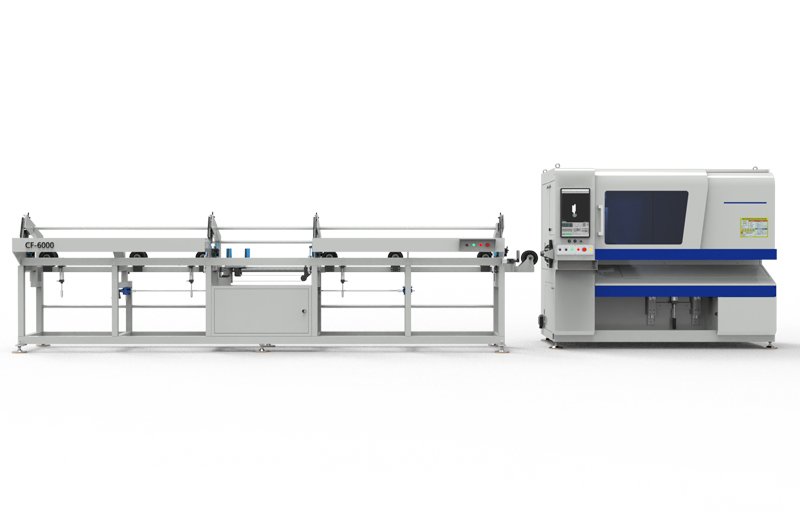

Model:A24 support 10mm-240mm pipe,bevel + straight cutting
Lonwill can customize the ultimate cost-effective high-performance cutting machine according to your needs
Cost-efficiency
Lowers the initial investment and operation costs for laser cutting, making it an economical choice for businesses.
High-speed cutting
1.5G of acceleration and lightweight and strong structure design substantially ensure efficiency and value creation per second.
Easy operation
Intuitive controls and smart features simplify laser cutting operation and maintenance, making it accessible and efficient for all skill levels.
Diverse power and size options
The A series caters to different business needs and project scales, offering power options from 1.5kW to 60kW and size variations ranging from 3048mm x 1524mm to 14000mm x 3100mm.

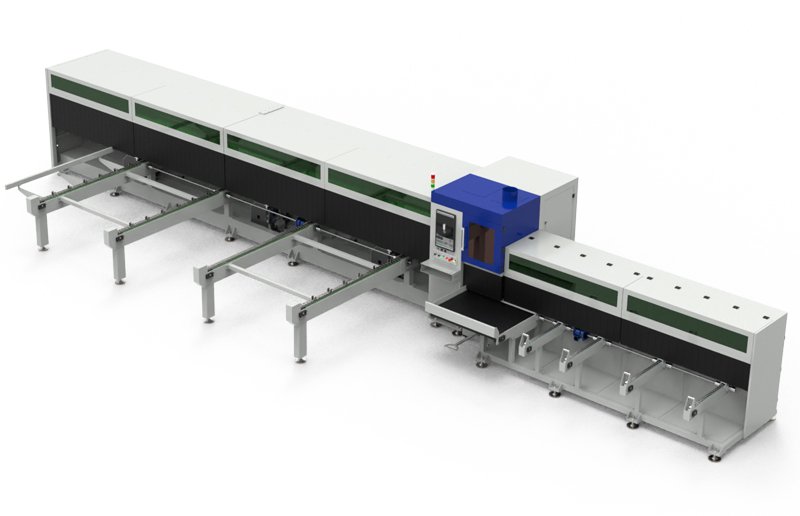

Lonwill A Series Tube Laser Cutting Machine
| Model | A16C | A22C | A90T |
|---|---|---|---|
|
Pipe diameter(mm) |
Circular tube φ20-φ 160 Square tube 20*20-160*160 |
Circular tube φ6-φ 80 Square tube φ6-φ 80 |
Circular tubeΦ13-80；Square tube13*13-60*60 Other maximum outer diameters≤80（Manual） |
|
The length of the feeding pipe |
6300mm |
6000mm |
5000-7000mm |
|
Manual feeding length |
No limit on length |
No limit on length |
No limit on length |
|
Maximum idle running speed |
1300mm/S |
1300mm/S |
1300mm/S |
|
Maximum rotational speed |
1280°/S |
1800°/S |
1280°/S |
|
Machine tool repeat positioning accuracy |
±0.2mm |
±0.1mm |
±0.03mm |
|
accelerated speed |
1.4G |
500mm/S² |
15000mm/S² |
|
Chuck load bearing |
150KG |
150KG |
60KG |
|
Operating Weight |
5T |
5T |
2.5T |
|
Overall dimension of machine tool(L*W*H) |
4129*1642*2015mm |
customizable |
4129*1642*2015mm |
Lonwill Machine Transmission and Precision
3015 sheet metal laser cutting machine is equipped with Japanese Yaskawa motor, Japan Shimpo reducer and Taiwan YYC rack. The positioning accuracy of the machine tool can be 0.02mm.
The machine features
Aerospace Aluminum Beam
Structural Strength Enhanced by
25
%
Weight Reduced by
30
%
* Data obtained from laboratory analysis
Pioneering
Modular Worktable Structure
reduces maintenance costs,ensuring safety and convenience.
Sheet Metal Laser Cutting Machine Features
Laser source
Raycus/Max/IPG,multiple choice Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Laser cutting head
Laser cutting head BLT310.This cutting head is integrated with multiple sets of smart sensors to provide real-time closed-loop intelligent monitoring. Diagnosis rapidly and timely warning.
Laser controller
This system is a Ether CAT bus system, stable and quick response and powerful in performance and can provide customers with complete laser processing solutions.
Water Chiller
Chinese high quality water chiller can take away the heat generated in time, control the temperature accurately and stabilize the light out put rate of the laser, so as to ensure the normal work of the laser cutter.
SMG Gear
SMG Gear adopts Japan standard precision manufacturing,rack tooth surface quenching hardness HRC58, can reach DIN6 level precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.
Servo Motor
The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. Yaskawa servo motor and driver adjustment-free function realize instant-on-use automatic tuning function improve performance,effectively guaranteeing the cutting quality.
Sample display
Widely applied in engineering, agricultural manufacturing, special purpose motor vehicle manufacturing, mining machinery and coal machinery manufacturing, sheet metal processing and other industries.
